AT-504

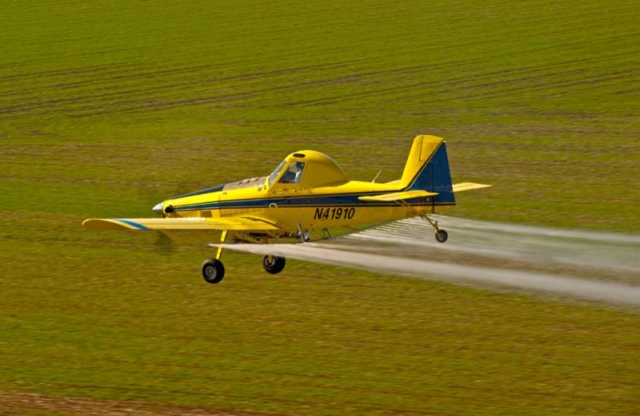

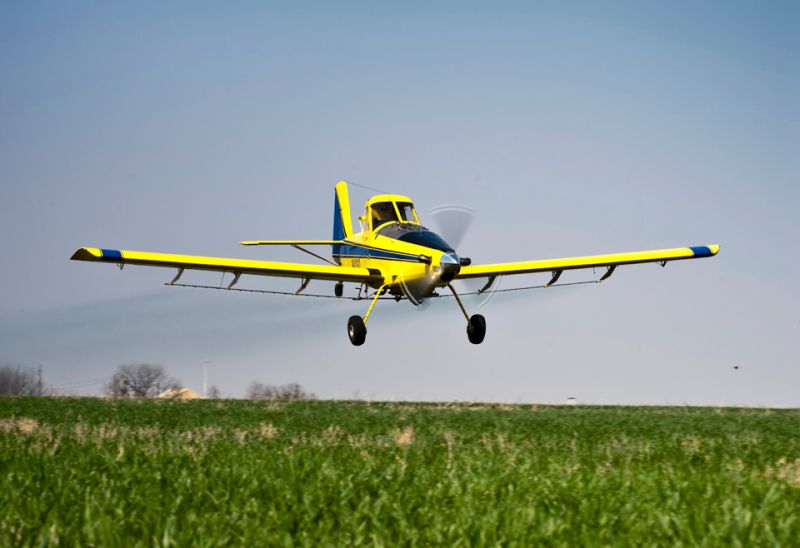

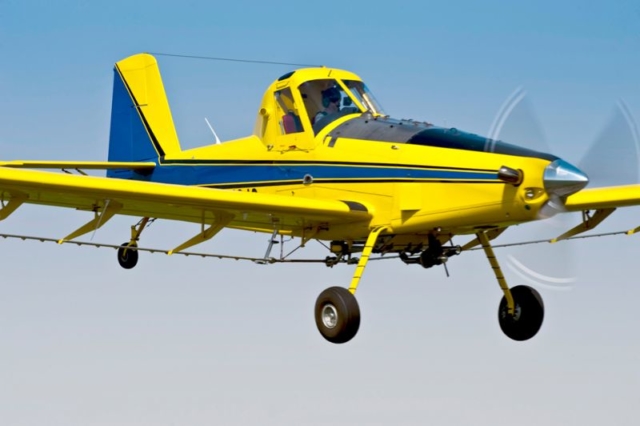

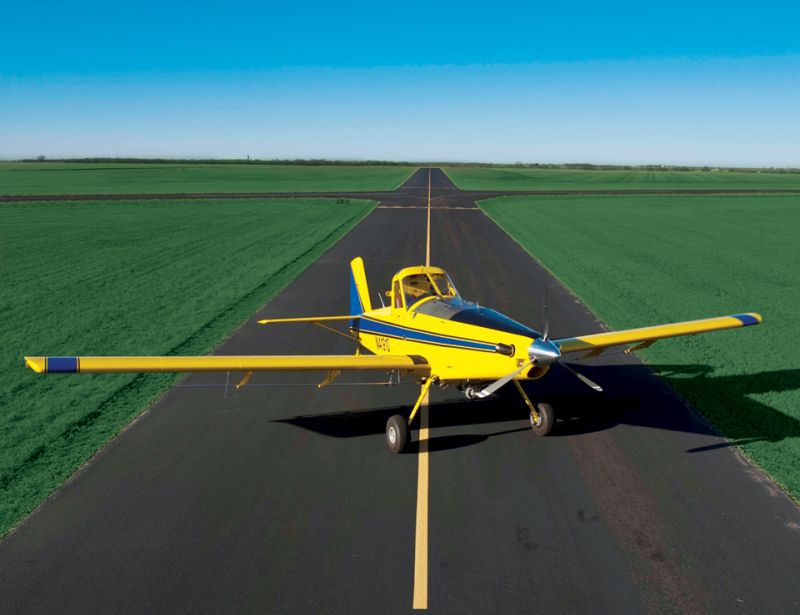

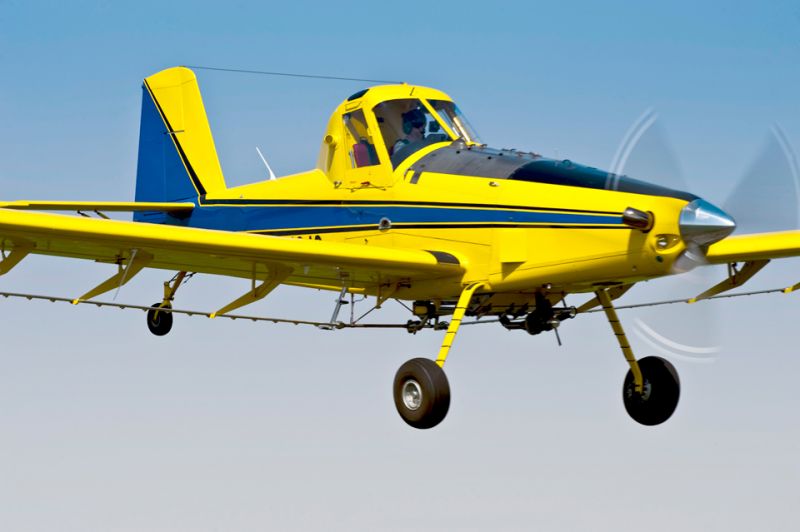

AT-504 – Trainer and Breadwinner

Just like the AT-502B, the additional wing structure allows installation of Hoerner wing tips that increase wing span to 52 feet, resulting in increased rate of climb and swath width for higher productivity. A new hopper rinse system is standard equipment.

As with all Air Tractors, the AT-504 is designed to provide operators with the productivity, safety and low maintenance that they have come to expect.

AT-504
Engine Type Pratt & Whitney PT6A-34AG
Engine HP & RPM 750 @ 2200 RPM
Hopper Capacity 1,893 Lit | 500 Us Gal
Take off weight 4,399 Kgs | 9,700 Lbs
Landing weight 3,628k kgs | 8,000 Lbs
Empty weight 1,950 kgs | 4,297 Lbs
Useful load 2,450 kgs | 5,403 Lbs
Fuel Capacity Option 1 643 Litres | 170 US Gal
Fuel Capacity Option 2 817 Litres | 216 US Gal
Fuel Capacity Option 3 885 Litres | 234 US Gal
Wing span 15.84 metres | 52 Ft

Related Models:  AT-502B, AT-502A
